2025 Ram 3500 Tradesman Chassis Regular Cab 4x4 - ATA Service Truck

2025 Ram 3500 Tradesman Chassis Regular Cab 4x4 - ATA Service Truck

Regular price $265,000.00 AUD
Regular price Sale price $265,000.00 AUD
Sale Sold out
Price excludes on-road costs (rego, stamp duty & transfer fees) Finance Available Delivery Australia Wide
Shipping calculated at checkout.

Available Now

2025 RAM 3500 Tradesman

4x4 Regular Cab Chassis - ATA SERVICE TRUCK

Australia Complied & Right-Hand Drive Conversion — Bright White

GVM
5,443 kg
As per manufacturer specification
Upgradable to 5,800 kg
GCM
12,474 kg
Kerb Weight
2,806 kg
Max Payload
2,637 kg
Towing
4,500 kg
Engine
6.7L Cummins Turbo Diesel

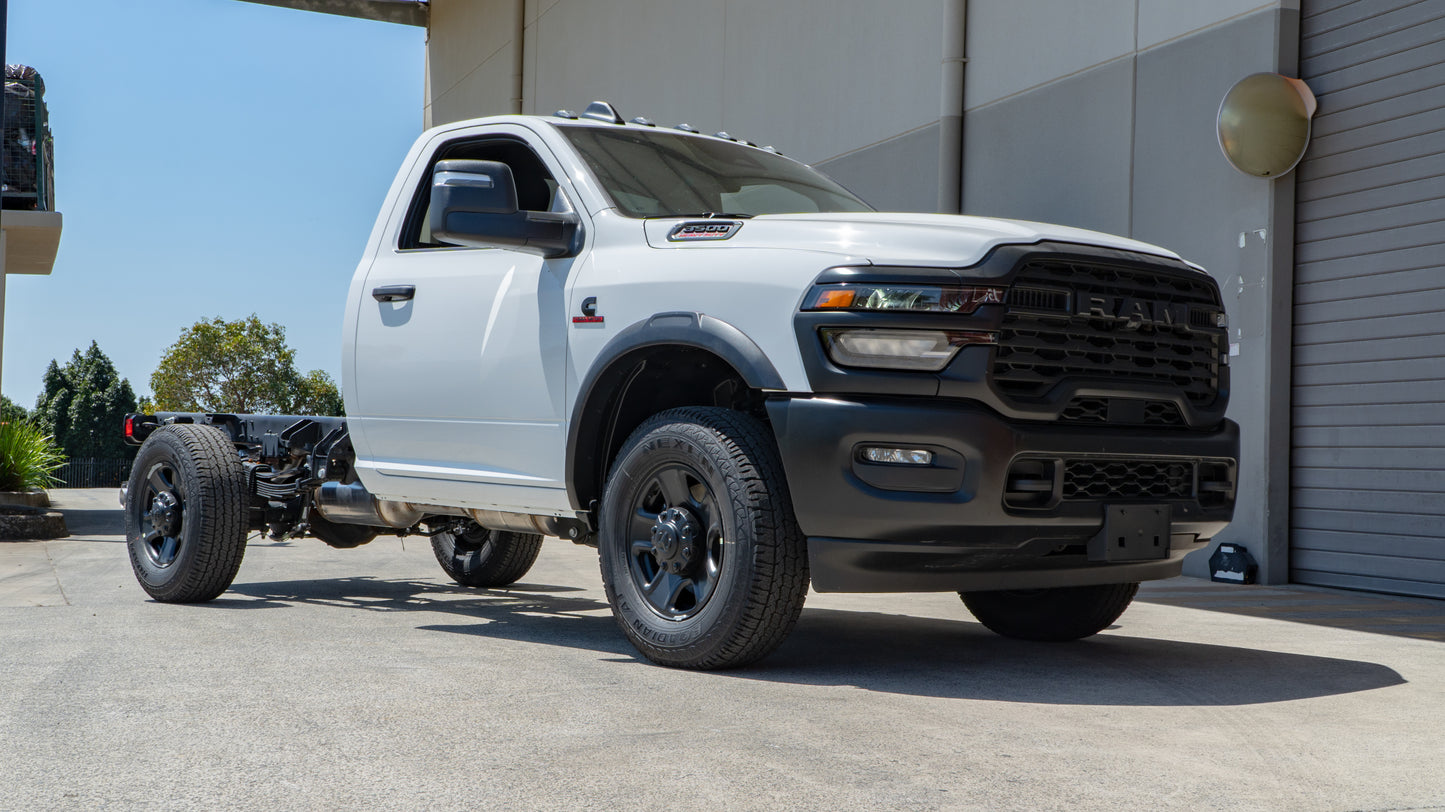

Built for those who need a true work platform, the 2026 RAM 3500 Tradesman 4x4 Regular Cab Chassis is the ultimate base for service bodies, tippers, flat decks and commercial upfits. Powered by the legendary 6.7L Cummins Turbo Diesel I-6 mated to the 8-speed TorqueFlite automatic — complete with factory-fitted Power Take-Off (PTO) capability — this chassis is purpose-built to handle the demands of Australian trades and industry. With a massive 2,637 kg payload capacity, 4,500 kg towing and a 196.8 L fuel tank, it keeps working as long as you do. Finished in Bright White and ready for your service body fitment.

Chassis Capability
  • GVM: 5,443 kg
  • Maximum payload capacity: 2,637 kg
  • GCM: 12,474 kg
  • Towing capacity: 4,500 kg
  • Cab-to-axle: 1,524 mm
  • Cab-to-end of frame: 2,847 mm
  • Front axle rating: 2,721 kg
  • Rear axle rating: 3,084 kg
  • Factory Power Take-Off (PTO) — right and left
  • Transfer case PTO provision
  • 196.8 L fuel tank — extended range for remote work
  • Multi-link front / leaf spring rear suspension
Powertrain & Drivetrain
  • 6.7L Cummins Turbo Diesel I-6 — 269 kW / 1,085 Nm
  • 8-speed TorqueFlite automatic transmission
  • Four wheel drive — electronic transfer case
  • 3.42 rear axle ratio
  • Transfer case skid plate shield
  • Smart diesel exhaust brake
  • Dual 730 amp maintenance-free batteries
  • 220 amp alternator
  • Selective Catalytic Reduction (urea)
  • B20 bio-diesel compatible
  • Supplemental heater
  • 4-wheel disc brakes with ABS
Tradesman Exterior
  • Bright White exterior paint
  • Method Race Wheels
  • Black heated power-fold telescopic tow mirrors
  • Power convex auxiliary exterior mirrors
  • Mirror running lights and turn signals
  • Black wheel flares
  • Ground clearance: 221 mm
  • Tuff Australia Bull Bar
Interior & Technology
  • 3-seat regular cab — Black cloth 40/20/40 bench seat
  • Uconnect 5 Nav — 305 mm (12") touchscreen
  • GPS navigation
  • Alexa Built-In voice assistant
  • Dual zone automatic climate control
  • Remote start system
  • 400-watt inverter
  • 115V auxiliary power outlet
  • Digital rearview mirror
  • Tinted acoustic windscreen
  • Remote keyless entry
  • Speed sensitive power locks
  • Power front windows
  • Power 2-way driver lumbar adjust
  • Trailer brake control with trailer light check
  • Off-road information pages

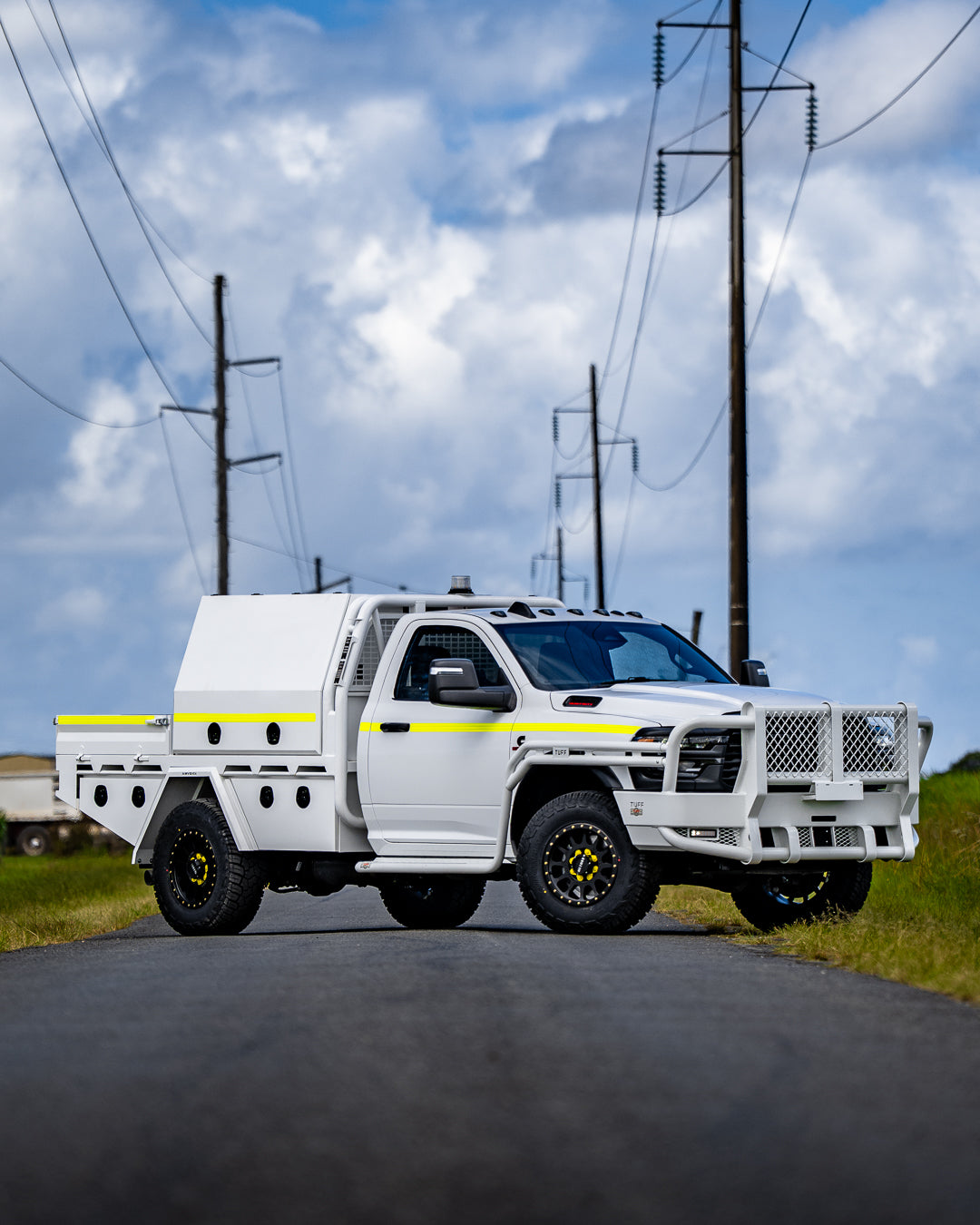

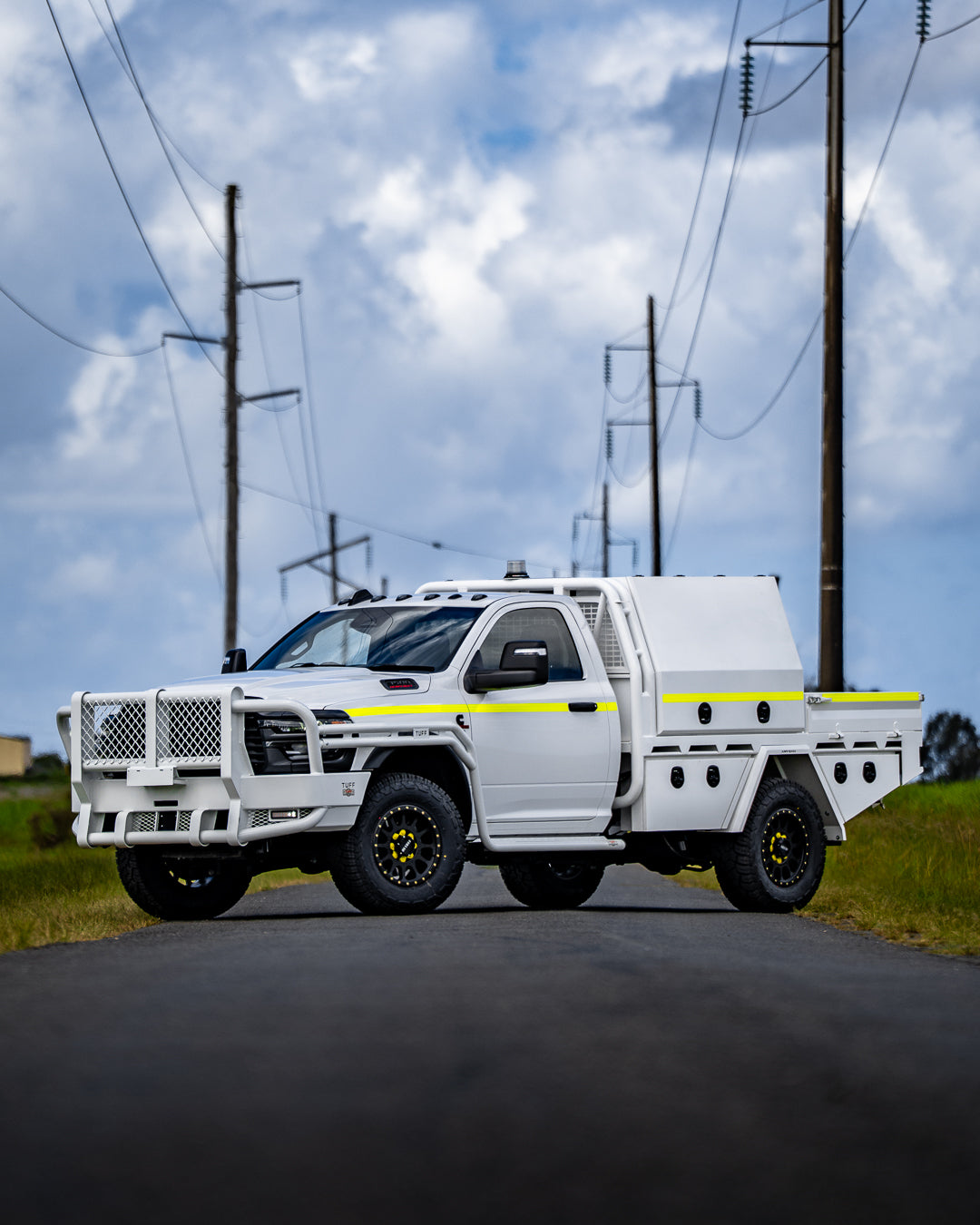

AMVE SERVICE BODY ROPS Tray & Canopy
  • Purpose-built by Allsafe Mine Vehicle Equipment (AMVE) — engineered and certified specifically for the RAM 3500 Regular Cab chassis
  • Full ROPS and FOPS certification — Roll Over Protection Structure and Falling Object Protection Structure compliant for mine site and heavy industry operations
  • Ram Single Cab Dual Hoop Steel ROPS Tray — tray length 2,851 mm, overall body 2,929 mm, internal width 1,800 mm, canopy height 1,145 mm
  • Under-body roller drawer — 2,100 mm full-width heavy duty sliding storage accessed from the rear
  • Custom Minespec Toolbox — Driver Side: 1,500L x 652D x 1,030H mm lockable side-access storage
  • Custom Minespec Toolbox — Passenger Side: 1,500L x 652D x 1,030H mm lockable side-access storage
  • Front toolbox — Driver Side: RAM 3500 S/Cab ROPS toolbox with tie rail mount
  • Front toolbox — Passenger Side: RAM 3500 S/Cab ROPS toolbox with tie rail mount and integrated water filler point
  • Rear toolbox — Driver Side: RAM 3500 S/Cab ROPS toolbox with tie rail mount
  • Rear toolbox — Passenger Side: RAM 3500 S/Cab ROPS toolbox with tie rail mount and integrated fuel filler point
  • Under-tray stainless steel water tank: 600 x 700 x 170 mm — plumbed to passenger side water filler
  • Flashing warning lights and full reflective tape as pictured — mine site ready
🛡

5-Year Unlimited Kilometre Warranty

Professionally converted to Right-Hand Drive and fully ADR compliant for Australian registration. Comprehensive warranty package includes 24-hour roadside assistance.

Enquire Today — Available Now Ready for your service body, tipper, flat deck or custom upfit — the RAM 3500 Chassis is Australia's most capable commercial truck platform.

Disclaimer: Photos displayed are for reference purposes only and may not represent the exact vehicle available. Specifications, features, and colours may vary. All prices exclude on-road costs including registration, transfer fees, stamp duty, and any other government or statutory charges unless otherwise stated. All weights, measurements and towing figures displayed are approximate only and are based on manufacturer data. These figures may vary depending on vehicle configuration, options fitted, and operating conditions. It is the customer's sole responsibility to conduct their own independent research and seek appropriate professional advice to verify all specifications, weights, and ratings prior to purchase. American Trucks Australia accepts no liability for any reliance placed on the figures displayed.
